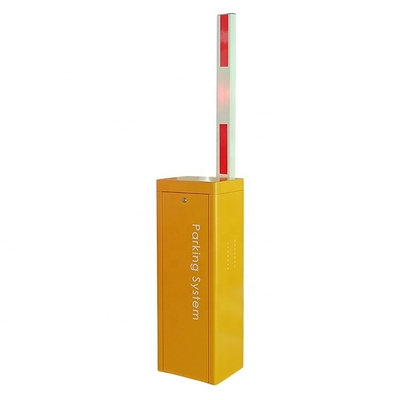

Classic Automatic Barrier Gate System Traffic Barrier Gate Traffic Barrier Gate Radar Detector

Classic Automatic Barrier Gate System Traffic Barrier Gate Traffic Barrier Gate Radar Detector
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Payment & Shipping Terms
Product Description
Products Description


Functions & Features

1. Wheel manual release. In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually. When power on, the motor will work normally
2. Machine core with strong and double springs, make the machine core works more steadily
3. Die-casting aluminum alloy motor, precise and good at thermal radiation
4. Crank and rod structure makes the boom run placidly
5. Double safety limit switches(photo electricity limit switch and motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the infrared photocell for anti-bumping function(optional)
9. Support external and internal vehicle loop detector(optional)
10. Traffic light interface(AC220V, can support lamp with 40W)
11. Wire control(switch signal)/Remote control(418MHZ)
12. Digital limit, more precise
13. Open, close control interface for parking system
14. Provide limit state signal to parking system
Technical Data
Arm Dimension
45*100MM
Voltage
AC220V±10%,AC110V±10%
Frequency
50/60HZ
Power Consumption
200W
Humidity
≤90%
Working Temperature
-35℃~+60℃
Housing Dimension
(W"D"H)
335*285*925MM
Enclosure Rating
lp54
MTBF
2,500,000 times
Weight
40KGS
