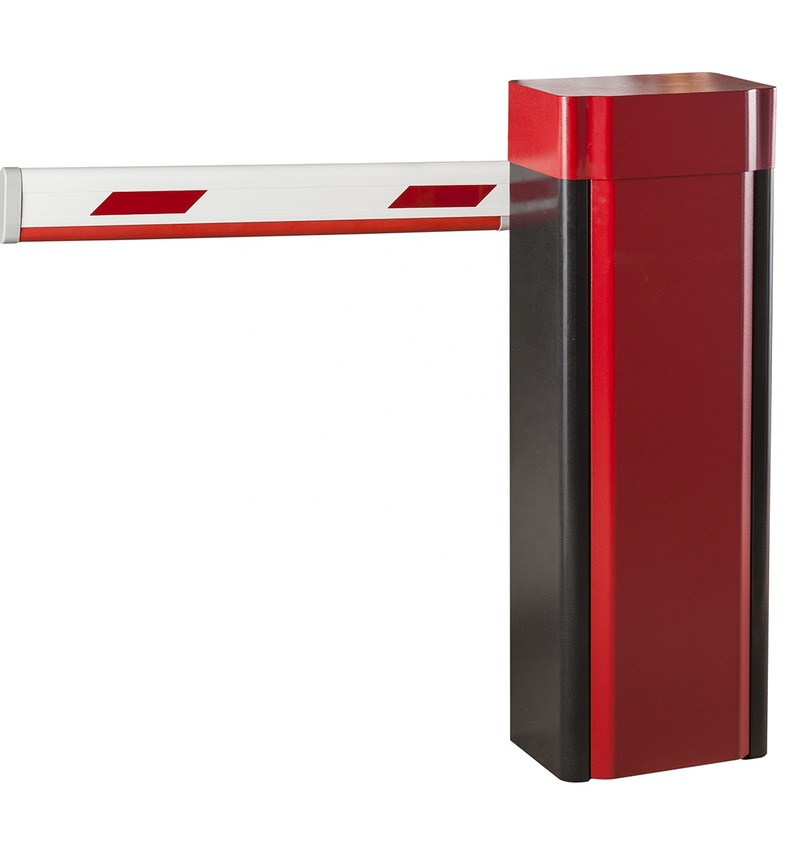

Xianfeng Machinery Automatic Traffic Barrier Boom Barrier
The automatic barrier series are used for parking lots, toll gates, goods yards, railway crossings, commercial premises, apartment block access and other applications.
The barrier is composed of driver, electric system, arm and bracket. It has protections of current leakage and electromechanical limit.
We have many models of automatic traffic barriers such as DC535Y, DC655Y, DC315Y, DC307, DC660, etc. the opening & closing time will be 0.7-5.5s, according your requirement.
Feature
1. For control and management of parking lots, toll gates and more applications.
2. Sine lever drive mechanism ensures quick opening and closing of the boom with soft landing.
3. Oil immerged gear reducer.
4. The unique transmission system ensures higher output torque.
5. Self-locking in closed position.
6. Powerful balance spring.
7. Auto-stop in the event of obstruction.
8. Open (up) priority.
9. Manual release handle in case of power failure.
10. Wiring terminals for red & green alarm lamp, loop detector and infrared photocells.
Technical specification
|
Model |
DC535-3 |
DC655-3 |
|
Power supply |
220×(1±10%)V 50Hz |
220×(1±10%)V 50Hz |
|
Motor power |
180W |
180W |
|
Motor speed |
1400r/m |
1400r/m |
|
Opening/closing time |
3.5s |
5.5s |
|
Remote distance |
30m |
30m |
|
Noise |
≤62dB |
≤62dB |
|
Ambient temperature |
-20ºC~+45ºC |
-20ºC~+45ºC |
|
Dimension |
360*230*1050 |
360*230*1050 |
|
Straight arm length |
3m-5m |
4m-6m |
|
Folding arm length |
≤4.5m |
≤5m |
|
Fencing arm length |
≤4m |
≤4.5m |
|
Weight |
60kg |
60kg |
|
Output voltage interface |
12V |
12V |
|
Cycles per hour |
200 |
130 |
|
Service life |
One million |
One million |
Packaging: Neutral carton
Delivery Detail: Delivery time within 15-25working days
Shipping: Send by express, sea or air
1. Small MOQ is required, One set is available for checking our quality first conveniently
2. OEM/ODM is available, we can help to print logo on products.
3. Most advanced machines imported from German and make our products of high precision
4. All kinds of gate operators and road barriers, Widely product range can provide full solution to save your time and cost
5. Strong customization capability, we are very capable to custom produce with your drawings
6. The first manufacture of gate openers in China , We specialize in Automatic gate openers & gate automation for more than 27 years.
7. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
8. Rich experience in selling and installing, also problem solving.
Zhejiang Xianfeng Machinery Co., Ltd. established in 1970, we are the first professional manufacturer for Automatic Gate Operators in China. There are more than 600 employees and 100 research and development engineers, with a strong design and production capacity. We have issued the China Automatic Gate Operator Industry Standard in the year of 1989. Our company has been upgraded to the biggest and professional manufacturer of Automatic Gate System Control Products in China at present.
We have been leading manufacturer and exporter of these products over twenty years and are largely exporting worldwide with excellent quality and reasonable price. We have passed the ISO9001:2000, CE, ROHS, FCC, C-TICK, CQC and EMC Testing certificate.
xianfeng supply:
Automatic Sliding Gate Operators
Automatic Swing Gate Operators
Automatic Garage Door Openers
Automatic Rolling Door Openers
Automatic Traffic & Parking Barriers
