WEJOIN Eco-Grade Servo Barrier Gate WJDZE1
DC Brushless Servo Motor
Higher Stability, Longer Sercive Life and Easier Operation
Functions & Features
1). No clutch design: open the barrier gate by manual hand wheel when power-off.
2). No limit switch design: the motor can detect the boom position automatically.
3). Self-detect after power-on, open/close speed is adjustable.
4). With auto-reversing on obstruction function.
5). Infrared photocell interface is avaliable. (need to install photocell device)
6). loop detector interface is available, to avoid hitting the vehicle, and control the boom falling down automatically after vehicle passing. (need to install loop detector)
7). Build-in delay auto-closing function. coordinated with counting function.
8). With auto-aging test function.
9). NO/NC wire control signal input are optional.
Technical Data
| Model | WJDZE1 (speed 1.8~6s adjustable) | ||||||||||
| Running Speed | 1.8s | 3s | 4s | 5/6s | 5/6s | 5/6s | 5/6s | 5/6s | |||

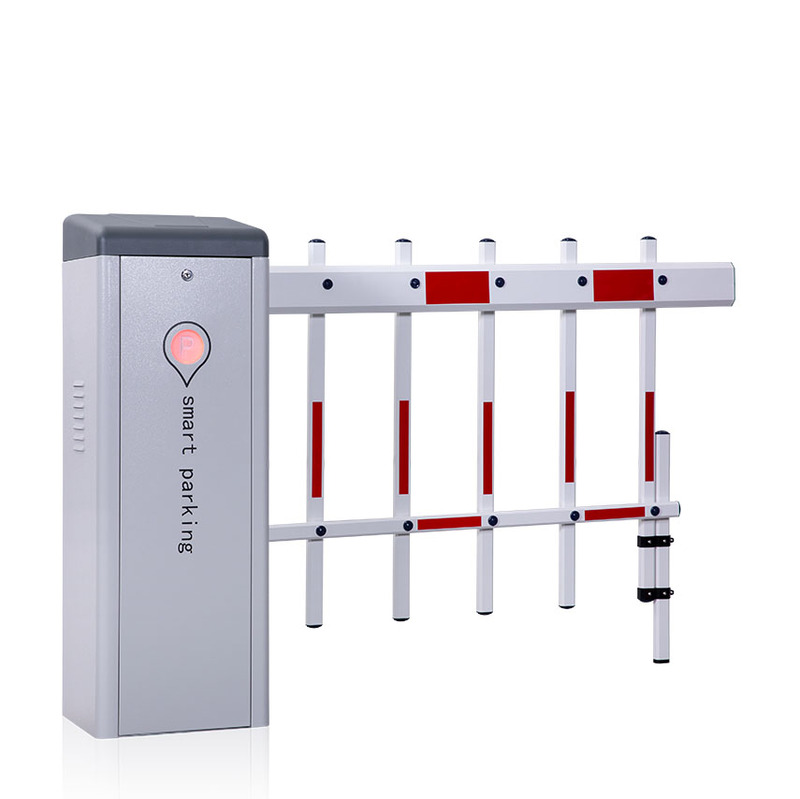

| Boom Type | Straight | Straight | Straight | Straight | 90° Folding | 180° Folding | 2 Fence | 3 Fence | |||
| Max Boom Length | 4m | 4.5m | 5m | 6m | 5m | 4m | 4.5m | 4m | |||
| Input Voltage | AC220V±10%,AC110V±10% | ||||||||||
| Frequency | 50/60HZ | ||||||||||
| Motor Voltage | DC310V | ||||||||||
| Enclosure Rating | IP54 | ||||||||||
| Working Temperature | -35°C~+85°C | ||||||||||
| MTBF | 3 million times | ||||||||||
| Max Motor Power | 120W | ||||||||||
| Max Motor Speed | 24r/min | ||||||||||
| Max Torque | 240N.m | ||||||||||
Machine Core
Controller
Optional Accessories
| Size | 102(L)*37(W)*47(D) |
| Weight | 60 KG |
| Packaging Details | The normal package is paper carton (Size:102*37*47 cm). If wooden box is needed to export or pack it according to customers special request. |
