Home /Products/Access Control Boom Gates/High Durable Security Function Anticrash Parking Boom Automatic Gate Barrier

High Durable Security Function Anticrash Parking Boom Automatic Gate Barrier

1 Unit
MOQ
High Durable Security Function Anticrash Parking Boom Automatic Gate Barrier
Features Gallery Product Description Request A Quote
Features
Specifications
Motor Material: Die-casting Aluminum
Color: Bule, Orange And White
Application: Over-sized Traffice Flow Area
Certificate: CE; ISO9001:2008
Cabinet: 2mm Zinc Plated Steel
Usage: Road Traffic Safty
Feature: High Durable
Surface Treatment: Powder Coating
Warranty: 1 Year
Keywords: Barrier Gate
Basic Infomation
Certification: CE; ISO9001:2008
Payment & Shipping Terms
Packaging Details: Paper Carton or Wooden Box
Supply Ability: 10000 Unit/Units per Month
Product Description

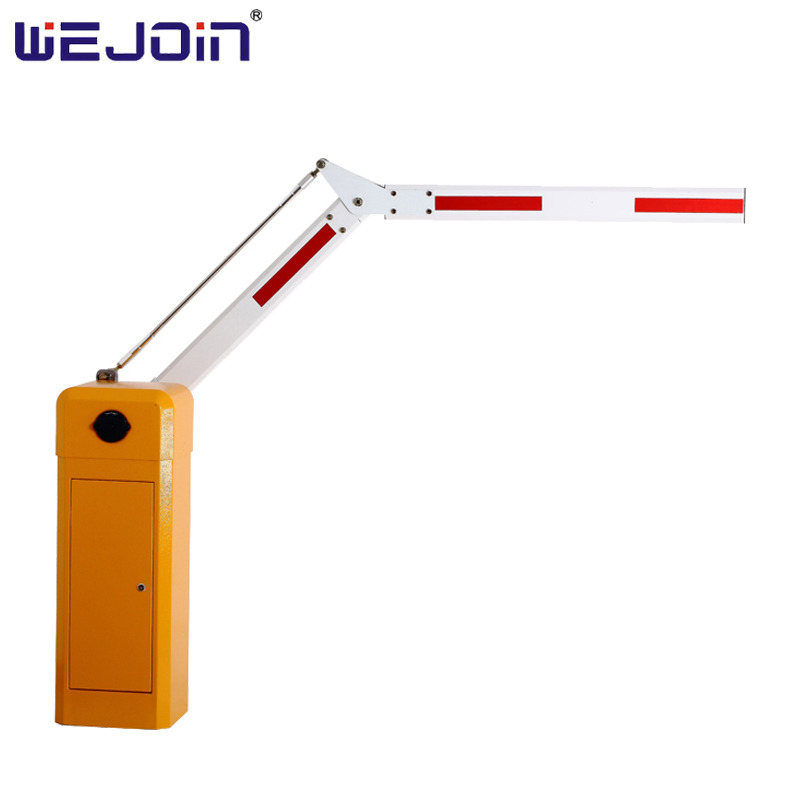

WEJOIN Barrier Gate

Product Application

The WEJOIN DZ102 barrier gate, which is manufactured by our company, adopts the latest automatic technology and intelligent design ahead in this field. Meanwhile, our barrier gates have an advanced design, such as a humanization clutch device, balance device, which makes our barrier gate work more safely and conveniently. This barrier gate is suitable for indoor as well as outdoor parking areas, parking lots, toll gates, goods yards, railway crossing, commercial premises, apartments, block access, shopping malls, hospitals, stadiums, business centers, etc.

Production Series
Model No.
Open/Close Speed
Max Boom Length
Boom Type
WJDZ102-16
6 seconds
6m
Straight boom
WJDZ102-13
3 seconds
4.5m
Straight boom
WJDZ102-11
1 second
3m
Straight boom
WJDZ102-26
6 seconds
5m
90 degree, Articulated boom
WJDZ102-23
3 seconds
3m
90 degree, Articulated boom
WJDZ102-36
6 seconds
5m
180 degree, Articulated boom
WJDZ10-33
3 seconds
3m
180 degree, Articulated boom
WJDZ102-46
6 seconds
4.5m
Two-level, fence boom
WJDZ102-56
6 seconds
4m
Three level, fence boom
Technical Specification
Working Temperature
-35℃～+75℃
Voltage
220V±10%, 110V±10%, 50/60HZ
Rated power
80W
Relative humidity
≤90%
Remote control distance
≥30m
Net weight
60kgs
Arm Speed
1s, 1.8s, 3s, 6s
Max boom length
8 meters

Main Features

1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on an obstacle
7. Auto-closing
8. Support the INFRARED PHOTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)\ Remote control(418MHz)
12. RS485 Communication module (optional)


Advanced Features


Function: Unti-bumping

The barrier will automatically go back when meeting obstacles during closing.


Function: Swing-out boom holder

The arm will swing out when hit directly by the vehicle to avoid further damage to the vehicle.



Functio: Clutch Key

The clutch key can be used to release the clutch when power off.



Feature: Exactitude aluminum alloy die-casting motor

An exactitude aluminum alloy die-casting motor base reduces the noise and joint abrasion to prolong the barrier gate working life.


Feature: Double limit ways

Double limit ways (electronic limit and motor sensor memory limit) for boom rising and falling.


Compression Spring

Special spring device--- both the compression spring and tension spring can be used in the machine. Using the compression spring can avoid accidents caused by the tension spring.

Certifications
Quality Control
All Product Tests Before Delivery
WEJOIN utilizes advanced testing equipment and various testing methods in all production processes.
Our Company
Packing & Delivery
Packaging
Size
102 (L) * 37(W) * 47 (D)
Weight
60 KG
Packaging Details
The normal package is a paper carton (Size: 102*37*47 cm). If a wooden box is needed to export overboard, the wooden box will be fumigated.
Packaging
Size
615 (L) * 11 (W) * 5 (D)
Weight
6.6 KG
Packaging Details
The normal package is foam paper.
If wooden box is needed to export overboard, the wooden box will be fumigated.
Our Service
Payment Term
Leading Time
Minimum Order
Supply Ability
Package
T/T; West Union
5-7 working days
1 Unit
10,000 Unit/ Month
Paper Carton or Wooden Box

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
