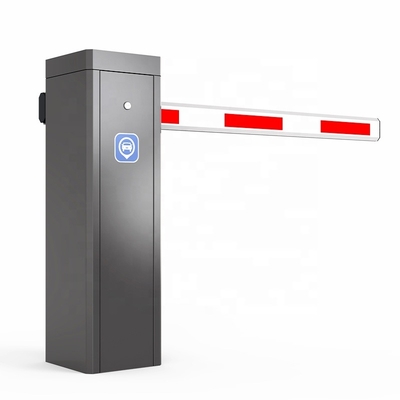

Non-spring DC Brushless Motor 24V Barrier Gate Automatic Boom Barrier Gate With 6m Arm
DC Barrier Gate Specifications:
| Model No. | DZ-2228 |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Net Weight | 35KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Input | 24V relay signal or Pulse Wide>100MS |
| Power Supply | DC24V, AC220V/110V, 50/60Hz |
| Motor Consumption | 200W |
| Working Temperature | -35°C to +85°C |
| Relative Humidity | ≥90% |
| MCBF | 5 million time |
| Push Button | Support |
| Remote Control | Distance≤100m |
| Optional Accessories | Loop detector; photo cell |
| Beam Length | 1M - 6M |
| Opening/Close Time | 2.5sec-8sec |
Functions and Features:
2. Run speed can adjust from 2.5sec to 8sec
3.Arm automaticlly locking when power off, then open the barrier gate by motor wheel
4.Remote control to operate the barrier gate.
5.Auto-reverse when the boom meets obstruction.
6.Infrared photocells connector is available.
7.Loop detector connector is available.
8.Well-intergrated with car parking system equipment,with wire control(must be switch signal).
9.Connector for traffic light(AC220V,power less than 40W)
10.Offering dry contact signal for car parking system(COM,NC,NO)
11.Auto-delay when closing(adjustable)
Service for free:
1. One year free service is supplied(not including the arm and remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or Alibaba
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
| Contact Person : | Guan |
|---|
