Features

Specifications

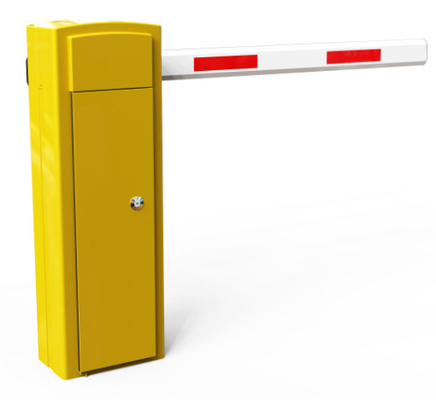

Product Name: Barrier Gate

Color: Optional

Packing: Pallet

Power Supply: 220VAC 50HZ/110VAC 60HZ

Time For UP/DOWN: 1.5S( For 1~2m),3S(3~4M), 6S( For 4~6m)

Max Length Of Bomm: 6M

Boom Arm Material: Aluminum Alloy

Certificate: CE SGS ISO9001-2008 ISO14000

Basic Infomation

Certification: CE SGS ISO9001-2008 ISO14000

Payment & Shipping Terms

Packaging Details: Packing details: 1 Set with Exported Carton Box and then, with wooden pallet to double protect

Product Description

Products Description

Model: (AC) Motor

Power supply: 220VAC 50HZ / 110VAC 60HZ
Motor's power: 90W 220VAC
Max length of boom: 6m
Time for up/down: 3S( for 1~3m),6S( for 4~6m)
Environment temperature: -20^oC-50^oC

Protection class: IP55

Model:(DC) Motor

Power supply: 220VAC 50HZ / 110VAC 60HZ
Motor's power: 80W 24VDC
Max length of boom: 6m
Time for up/down: 3S( for 1~3m),6S( for 4~6m)
Environment temperature: -20^oC-50^oC

Protection class: IP55

Control Board for AC Motor

Input terminals:

Photocell, Air wave switch, Loop detector, Toll gate system.

Output terminals:

Motor, Lamp

Control Board for DC Motor

Input terminals:

Photocell, Air wave switch, Loop detector, Back-up battery, Toll gate system.

Output terminals:

Motor, Lamp

Functions:

Reverse when meet obstacle.

Force of opening and Closing in adjustable.

Features：

1.-The traffic barrier is widely used for the facilities of parking, traffic or toll system.

2.-Arms can be chosen from 3 meters to 6 meters.

3.-This type of barrier could match with direct boom( pole), fold boom Or fence boom..

4.-Advanced manual release .Clutch key can be used to open the clutch when electricity is cut off.

5.-All the process is soft without any noise and shaking.

6.-This barrier gate has many input terminals for photocell, Airwave switch, loop detector, back-up battery(for DC Motor), toll gate system and output terminals for lamp.

7.-Housing color: yellow,red ,blue,orange,white (optional)

8.-Boom arm direction can be chosen leftward to rightward.

9.-Auto warming up,suitable for cold environment.

10-Controlling way :wireless or wiring multiple push button for OPEN,CLOSE,STOP function.

mechanism:

2 series mechanism

BS-106, BS-206, BS-306,

BS-406, BS-606, BS-806,

BS-3306, BS- 6306, BS-6706

3 series mechanism

BS-3306, BS-306, BS-606

7 series mechanism

BS-6306, BS-7206, BS-7306,

BS-7406, BS-7506。

Baisheng remote control parking barrier trouble shooting

Number	Trouble	Cause	Shooting
1	Motor of Barrier does not work	1,No power supply	1,Check power supply
				2,Break fuse	2,Change fuse
				3,Motor is damaged	3,Change the motor
2	Barrier can open but can not close	1,Photocell is not connected properly	1,Connect the photocell
				2,Photocell beam is block off	2,Clear out obstacle
				3,Photocell is broken	3,Change a new device
3	Barrier can open (close) but can not close (open)	1,Position of limit switch is not correct	1,Adjust position
3	Barrier can open (close) but can not close (open)			2,Limit switch is damaged	2,Change limit switch
4	Barrier can not locate accurately	1,Distance of limit switch is too large	1,Adjust position of limit switch
				2,Limit switch is wrong	2,Change limit switch
				3,Magnetic-stell’s position is wrong	3,Re-adjust the position
5	Release device of Barrier is doesn’t work	1,Operating handle is broken	1,Change the handle
5	Release device of Barrier is doesn’t work			2,Worm gears are jammed	2,Rotate the pinion
6	Push the “OPEN” button but the Barrier gate close	Whether “+MOTOR-” wires are connected wrong	Connect correctly according to wiring diagram
7	Motor of Barrier can work but boom can not work	Compression spring of clutch is dead	Change the spring

Product packaging

Accessories

Loop Detector

LD100 220VAC(±15) 50Hz

LD102 12/24VDC(±15)

Photocell(IR33)

Power supply:12-24V

Range:≤ 10m

Infrared Frequency: 1.92KHz

Input: RX15mA TX30mA

3 buttons wall switch

Fixed code

Company Profile

BISEN SMART ACCESS CO,.LTD was established in 1999, located in NanChang, China.

We are the biggest professional manufacturer for parking management system and equipments, gate and door automatic operators in China. more than 70 experienced engineers are engaging in R&D team , and more than 500 employees are working in manufacturer and service. We can provide quality ODM / OEM service for customers.

Our main products: Parking system auto-barrier gate, Sliding gate opener, Swing gate opener, Industrial sectional door opener, anti-terrorism road blocker, Hydraulic bollard, Pedestrian gate, Entrance control system etc.

Exhibition

Certifications

Manufacturing Technique

Testing Equipment

Our Services

1.OEM Manufacturing welcome: Product, Package.

2. MOQ: 1 piece

3. Warranty:1 year

4. We will reply you for your inquiry in 24 hours.

We have our own overseas service department and professional technology team, can meet different requirements of customers in the shortest time and supply the best service when you back home. To solve all the troubles back home and putting customer at first is our principle all the time!

FAQ

Q: Are you trading company or manufacturer ? A: We are a manufacturer. Q: How long is your delivery time? A: Depends upon the quantity. Normally about 5 days for 1 full 20 container, 7 days for 1 full 40 container. Q: Do you provide samples ? Is it free or extra ? A: Yes, we provide samples, it depends on the price, free or not need to negotiate. Q: What is your terms of payment ? A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance, balance before leaving factory If you have any other question, pls feel free to contact us.
