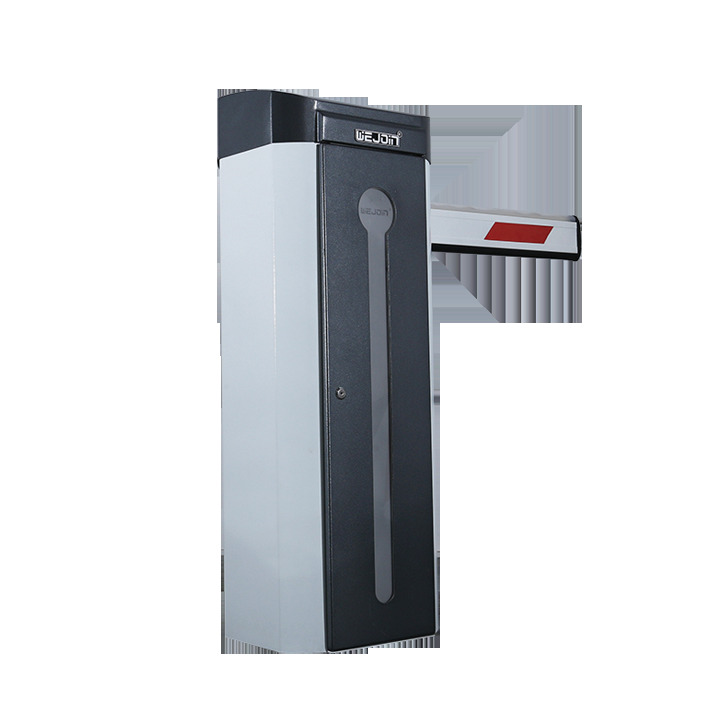

The WEDZ120 barrier gate, which manufactured by our company, adopt the latest automatic technology and intelligent design ahead in this field. Meanwhile our barrier gates have the advanced design, such as humanization clutch device, balance device(e.g), which makes our barrier gate work more safely and conveniently. This barrier gate is suitable for indoor as well as outdoor parking area, Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.
|
Model |
WJDZ12013 |
WJDZ12016 |
|
Opening Time |
3S |
6S |
|
Boom Type |
Straight, square-shaped |
|
|
Boom Length |
3M |
4M |
|
Voltage |
110V/220V |
|
|
Motor / Power |
AC / 120W |
|
|
Working Temperature |
-35°C - 75°C |
|
|
Protection Grade |
IP44 |
|
|
Remote Control Distance |
30M - 100M |
|
Functions & Features
1.Advanced manual clutch,Auto-reset when power on
2.Both compression spring and extension spring are suitable for the motor.The compression spring can avoid accidents caused by broken spring due to great force.
3..Reversing on obstacle
4.Infrared Photocells (optional)
5.Support the external and internal Vehicle Loop Detector (optional)
6Interfaces for opening,closing and pausing
7.RS485 Communication module
8.Traffic light interface
9.Wier control (switch signal)/Romote control 22OV MHZ
10.LED Screen
11.Automatic moisture control
12.Auto closing (for markets abroad)
| Mechanism picture |
| [ ADVANCED FEATURES ] |
| [ RELATED PRODUCTS ] |
| click below photo to see more |
| [ COMPANY INFORMATION ] |
| click below photo to see more |
SHENZHEN WEJOIN WECHANICAL & ELECTRICAL CO., LTD.
Shenzhen Weijoin Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise speciallized in research and development, manufacturing and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
| certificates |
| exhibitions |
|
[ WEJOIN MANUFACTURING TECHNIQUE ] |
| All Product Tests Before Delivery |
WEJOIN utilizes advanced testing equipment and various testing methods in all production processes.
|
Packaging
| Size | 102 (L) * 37(W) * 47 (D) |
| Weight | 60 KG |
| Packaging Details | The normal package is paper carton (Size: 102*37*47 cm). If wooden box is needed to export overboard, the wooden box will be fumigated.If container is too tigher,we will use pallet or pack it according to customers special request. |
| Size | 615 (L) * 11 (W) * 5 (D) |
| Weight | 6.6 KG |
| Packaging Details |
The normal package is foam paper.
|
Our Service
| Pyment Term | Leading Time | Minimum Order | Supply Ability | Package |
| T/T; West Union | 5-7 working days | 1 Unit | 10,000 Unit/ Month | Paper Carton or Wooden Box |
| [ FAQ ] |
Q: What is the warranty for the machine?
A: Whithin one years, if any problems, we will offer the accessories(but you pay the freight cost)
Q: Can machines be used at outside?
A: It could be used at outsise, the working temperature is -35°C - 75°C
Q: When will you make the delivery?
A: Regular products: 2-7days
Q: How does your factory control the quality?
A: Quality controlling from the beginning to the ending.
Q: What is your MOQ?
A: Any quantity is acceptable.
Q: Payment term?
A: 30% by T/T, 70% by T/T before delivery.
