Features

Specifications

Model Number: 18B

Max Length Of Boom: 6 Meter

Voltage: DC24V

Inslation Class: F

Warranty: 2 Years

Operation Lifetime: >=5 Million Times

Output Power: 140W

Feature: Durable

Altitude: 1000M Or Lower

Special Features: Waterproof / Weatherproof

Basic Infomation

Model Number: 18B

Payment & Shipping Terms

Supply Ability: 5000 Piece/Pieces per Month

Product Description

Products Description

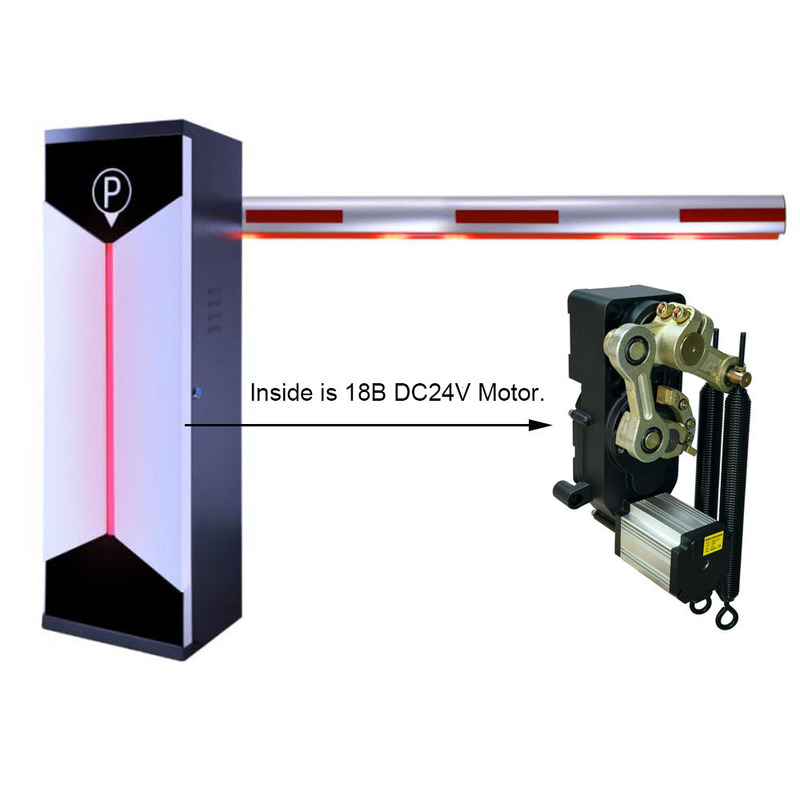

18B Motor Parameters

Voltage:DC24V	Output Efficiency:140W	Humidity:85% or lower
Insulation Class:F	Gate Operation Time:0.3-5S	Altitude:1000 Meter or lower
Current:6A	Operation Lifetime:>=5million times	Temperature Range:-40°C to +60°C (temperatures below -20°C require a heating element)
Applications: Generally suited for controlling gates leading to highways and expressways, as well as vehichle-plate reading systems for gated communities and commercial parking lots.

Interior Structure

Different color to choose

Max length of boom is 6 Meter

Old and New Product's Difference

Before:

1) Worm gear, general appearance

2) The previous products use with Rv50 reducer and added the splint to compose the movement. The worm gear is a consumable product. After using a long time, there will be a large gap, the pole will be not stable and shake so will cause the gear reducer to grind.

3)The products mainly used with AC 220V motor, the fixed speed was not adjustable.

4) Open structure, a low degree of protection, easy to enter water.

5) AC220V.

6) During installation, needs to adjusted the magnet position to ensure the door opening angle. After a long time, the shaking will affect the limit position or the pole may be deviated downwards.

After:

1) Gear transmission structure, beautiful appearance, compact structure, strong overall sense.

2) The new products are tailor-made for this industry and the gear adopts the processing technology of worm grinding wheel grinding after heat treatment, fine rolling of hard alloy hob, etc., the accuracy grade ≥ GB / T100951, 2-2001 7 level.

3)The new product uses with DC brushless motor to avoid the problem of carbon brush life. Adjustable speed.

4)The entire seal structure, high degree of protection (≥IP55); have a rainproof capability.

5) DC24V(Safe voltage)

6) Installed the chassis, adjust the position automatically after power on, and adjust the angle of rising pole and falling pole at will.

Packing List

Single net weight about : 43KG(Don't include the boom arm)

Single package carton size: 108.5X38X34CM Package Type: Carton or Wooden case

Company Profile

Shenzhen Chengbang Mechanical and Electrical Industry Co., Ltd. was established in 2010, located in Guangdong China. The factory with 5,000 square meter areas and more than 50 experienced employees which supply ability is 5,000pcs per month. We are the professional manufacturer for vehicle entrance management system and equipment (Swinging door operating mechanism, Brush-less gate motor, DC brush-less single unit operating mechanism, Commercial gate operating mechanism and so on). We have strong scientific technology, first-class produced lines, advanced gear testing centers and high-precision advanced equipment, imported CNC gears which are ahead of our peers in terms of quality. In pursuit of high quality products, excellent reputation, continuous innovation and development and perfect after-care service, we d launched a series of diversified products.

Our advantages:

1. NO MOQ limit.

2. 24 hours delivery for stock.
3. 2 year warranties.
4. 10 year experiences.

Workshop View

Assembly Equipment

Visit Factory

FAQ

Q: Are you wholesaler or trade company?
A: We're manufacturer of boom barrier motor and our factory is in Guangdong, China.
Q: How long is the delivery time?
A: 24 hours delivery for stock after full payment, for the bulk goods, need about 5-20 days.
Q: How about your warranty?
A: The movement's warranty is 2 years.
Q: Do you provide sample?
A: Yes, we can offer the sample for charge and freight collect.
If need more details, please don't hesitate to contact with us :-)

Exhibition

Enterprise Qualification
